The system utilizes X-ray or gamma technology and mounts directly over the customer’s existing conveyor, requiring no product contact or conveyor transfers. It operates effectively without the need for container spacing and can support line speeds of up to 3,000 containers per minute, ensuring optimal performance and high reliability in demanding production environments.
FillTrac is designed with advanced IT security, 24/7 remote support capabilities, and is SCADA-ready with optional IoT integration. It can be configured for use in standard or high-sanitation environments.
Key Features
- Tool-less Installation: Industrial design allows for quick, overhead mounting on existing conveyor lines without any product contact.
- Precise Fill-Level Measurement: Accurately monitors both product fill levels and headspace.
- 24/7 Remote Support: Integrated wireless connectivity enables secure global remote diagnostics and support. Over 95% of issues are resolved remotely using Peco InspX’s advanced support software.
- Robust IT Security: End-to-end cybersecurity solutions protect plant networks from external threats. Optional IoT module enables seamless SCADA integration.
- No Container Spacing Required: System works efficiently with containers positioned directly next to one another.
- Non-Contact, Conveyor-Top Installation: Eliminates the need to transfer products into a dedicated machine, reducing the risk of jams at transfer points.
- High-Performance X-ray Generator: Designed for continuous operation with zero maintenance required.
Typical Applications
- PET/Plastic Bottles
- Metal or Composite Cans
- Glass Bottles
- Cartons (Juice, Soup, Dairy)
Technical Specifications
- Detection Technology: X-ray or gamma-based systems
- Mounting Configuration: Over-conveyor installation; no internal conveyor or product transfers
- X-ray Tube: High-contrast X-ray or isotope
- Aperture Dimensions: Unlimited height; standard width 6.0” (152.4 mm), custom sizes available
- Environmental Rating: IP65 standard; optional washdown or corrosion-resistant upgrades
- Line Speed: Up to 3,000 containers per minute
- Input Voltage: 120 or 240 VAC
- Compressed Air Requirement: 80 psi @ 5 cfm (ejector system only)
- Operating Temperature: 33°F – 113°F (1°C – 45°C)

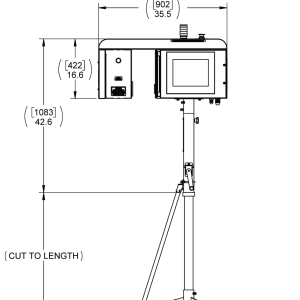

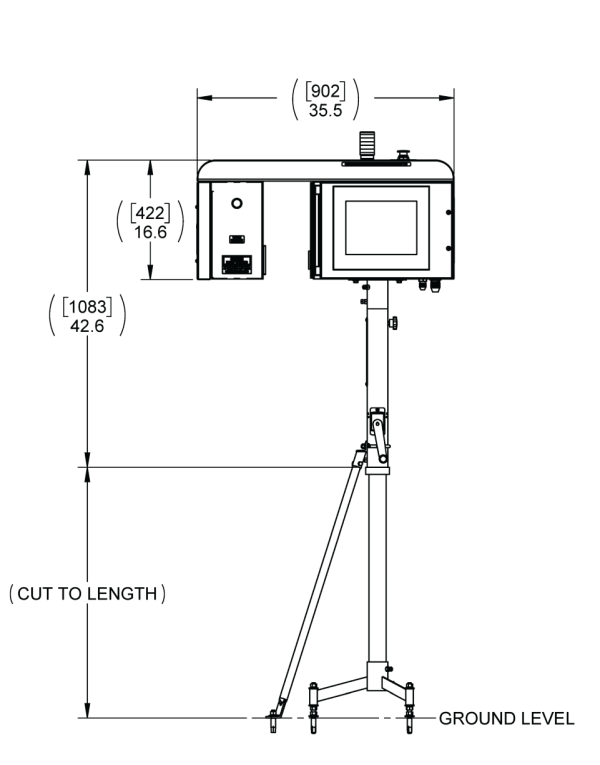

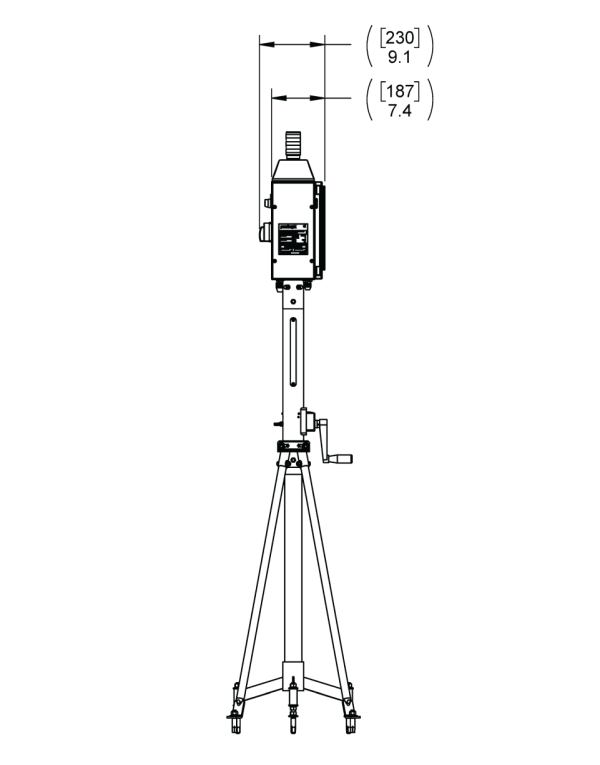

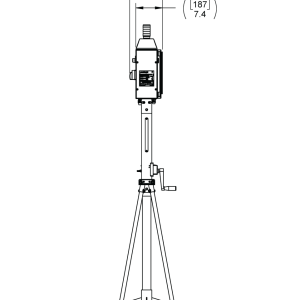

- System Dimensions (LxDxH): 9 x 30 x 47 in (229 x 762 x 1,194 mm)
- Safety Rating: Redundant – Category 4, Performance Level E
- Industrial Computer: Windows Embedded OS
- Connectivity: Integrated Wi-Fi, Ethernet, or Cellular
- SCADA Integration: Programmable digital outputs supported
- User Interface: 8” industrial touchscreen
- Construction Material: Standard 304 stainless steel; optional 316L/passivated
Optional Enhancements
- Remote Operator Console: Full monitoring and control up to 6 meters away
- Cocked/Missing Cap Detection: Economical sensor for plastic cap inspection
- Missing Foil Seal Detection: Verifies presence of foil under cap
- Sanitary Design Option: IP69K-rated enclosure for high-pressure washdown environments
- Reject Management Package:
- Lockable reject bin with access control
- Positive reject confirmation sensors
- Full-bin detection sensors
- Air pressure monitoring
- Optional software-controlled access lock
- Wide Range of Ejector Options:
- Single/multiple solenoid
- Swing arm
- Lift gate
- Drop gate
- Air blast
- Flexible rail
- Guided path
- Heavy-duty configurations for large containers
