FULLSIZE SEM – COXEM

Origin: Korea

Brand:

Category: Tags: , Thương hiệu:
Tags: ,

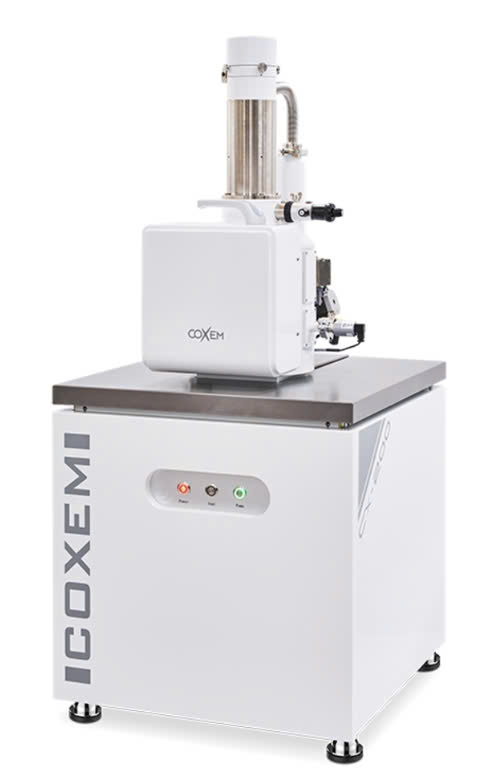

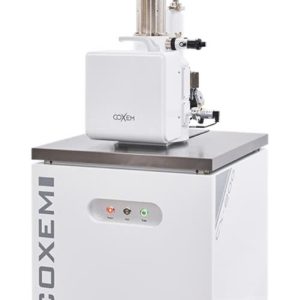

The CX-200K is a standard yet powerful full-sized Scanning Electron Microscope (SEM) designed to meet a wide range of research and quality control needs.

Featuring the all-new, intuitive NanoStation5 GUI, the CX-200K makes operation simple and efficient.

With a maximum magnification of 500,000x, it delivers outstanding high-resolution imaging. Experience faster, optimized imaging and choose from a variety of options to customize the CX-200K to your specific requirements.

The CX-200K combines advanced technology with ease of use, setting a new standard for basic yet powerful microscopy.

SPECIFICATION:

  • Electron gun: Tungsten Filament (W)
  • Spatial resolution: <3nm
  • Magnification: 9x to 500,000x
  • Accelerating voltage: 1 – 30kV
  • Sample stage: X: 80mm, Y: 80mm, Z: 80mm,
  • R: 360°, T: 20 ~ 90
  • Detector: SE, BSE
  • Vacuum mode: HV, LV (20Pa), VP (10, 20, 30Pa)
  • Vacuum system: Turbo pump (300L) + Rotary pump (100L)
  • Dimension (W × L × H): 640(W) × 882(L) × 1,432(H) mm, 200kg

FEATURES:

  • Panorama v2
  • Auto focus
  • Auto brightness & contrast
  • Auto start
  • Signal mixing
  • Triple display & Save
  • Line profile
  • Image filtering
  • Annotation tool
  • ChamberCam
  • Data output format
  • JPG, TIFF, BMP

OPTIONS:

  • EBSD, STEM
  • Coolstage
  • LV (20Pa), VP (10 / 20 / 30Pa)
  • NanofiberScanner
  • Scroll pump
  • Air-protection module
  • EDS (Oxford, Bruker)
