KÍNH HIỂN VI SEM – COXEM

Origin: Korea

Brand:

Category: Tags: , , Thương hiệu:
Tags: , ,

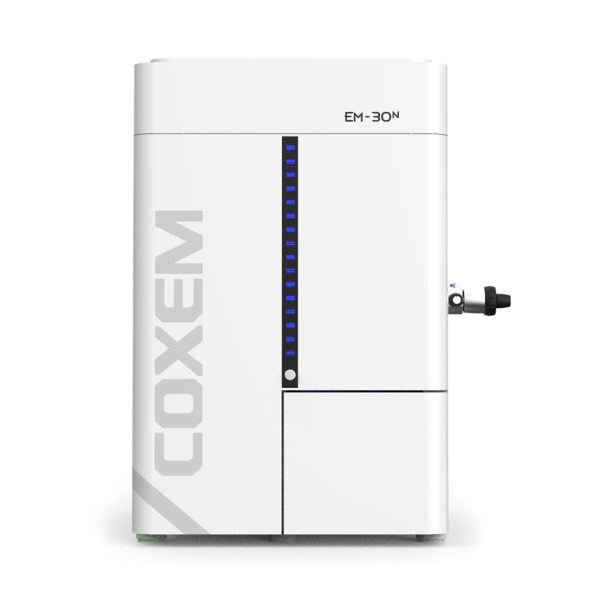

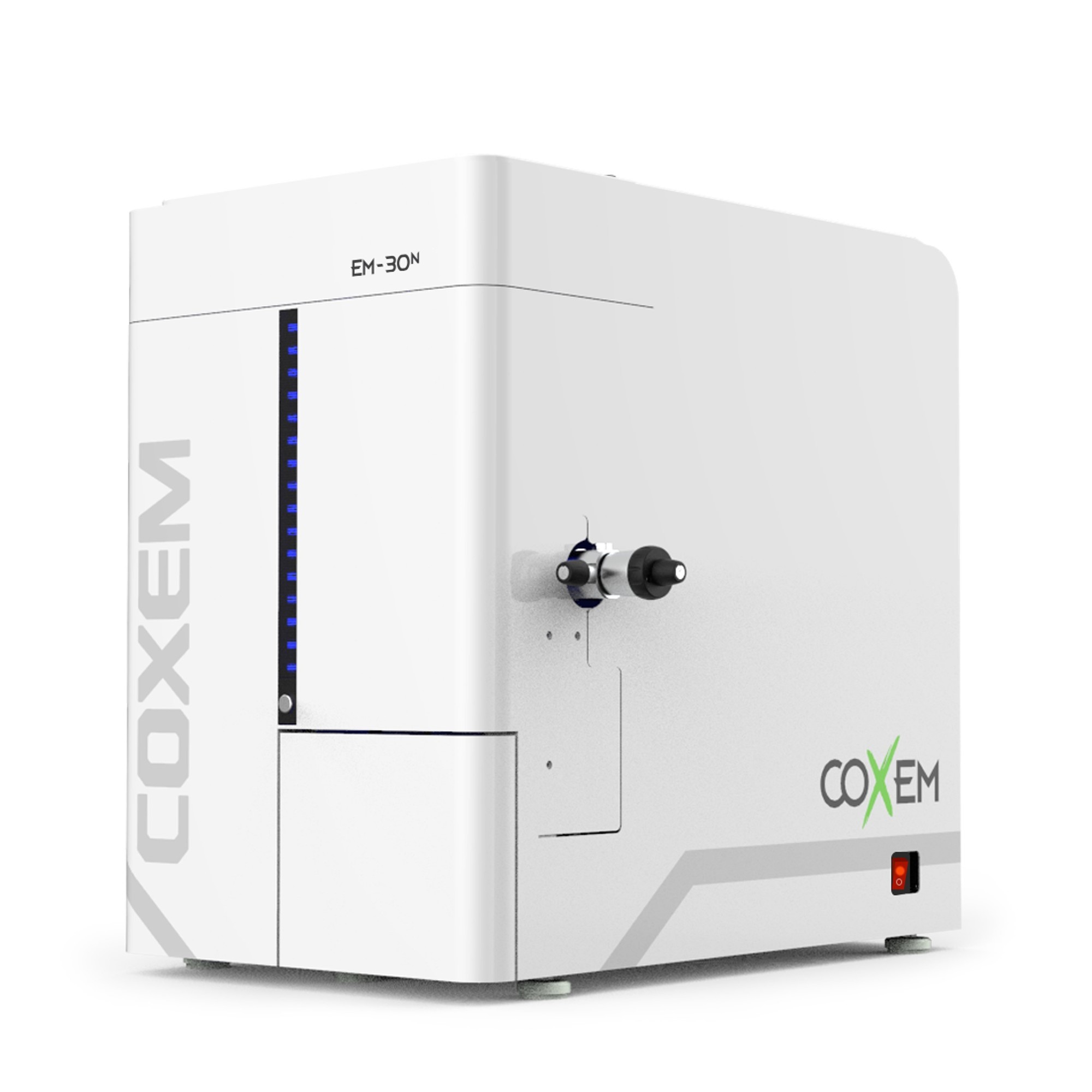

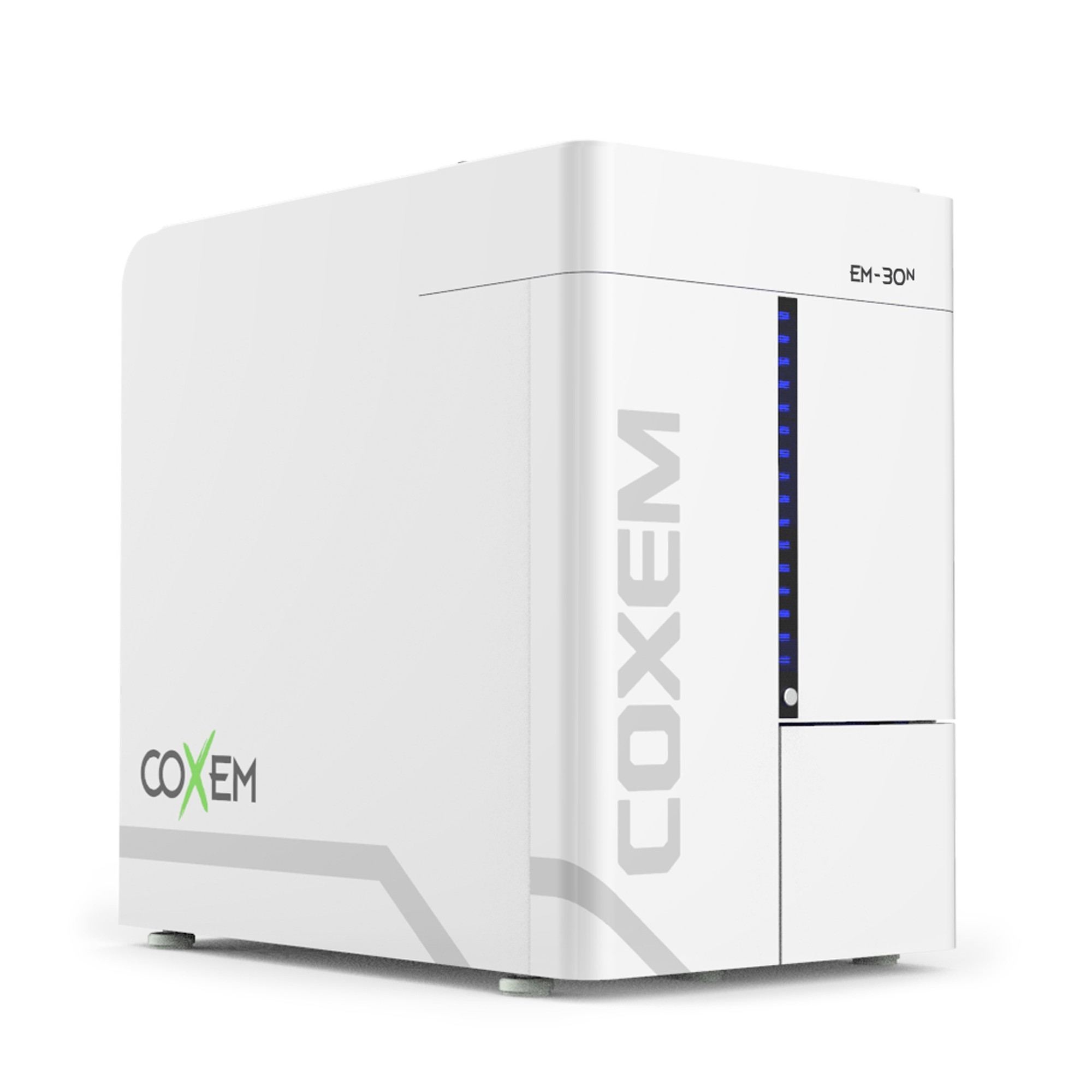

EM-30N is our most popular model of tungsten filament-based tabletop Scanning Electron Microscope (SEM).

With 5th generation DSP (Digital Signal Processing) technology, it delivers sharp, low-noise images even at high magnification. Panorama Mode enables wide-area scanning, while LV (Low Vacuum) allows you to capture high-quality, clear images of non-conductive samples without the need for conductive coating.

EM-30N is also the world’s first tabletop SEM that seamlessly integrates with a compact EBSD system, significantly enhancing its versatility and performance.

FEATURES:

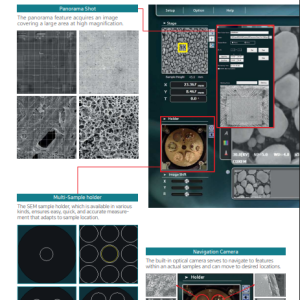

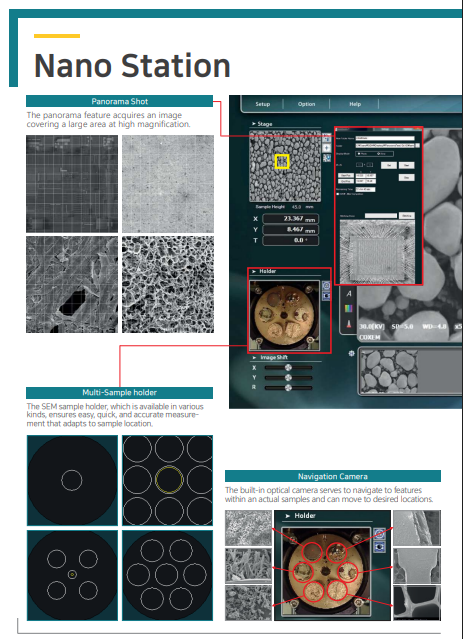

  • Panorama v1
  • Auto focus
  • Auto brightness & contrast adjustment
  • Auto start

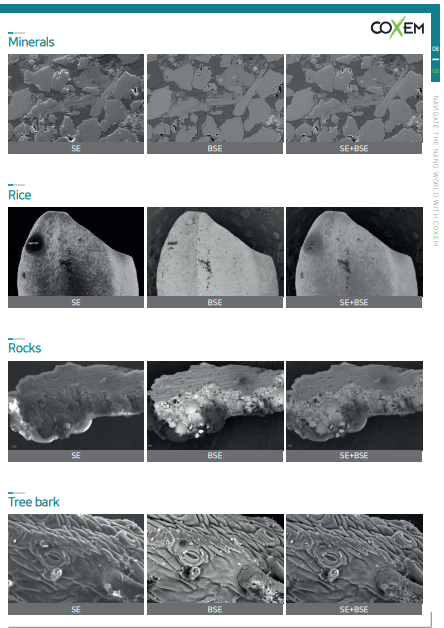

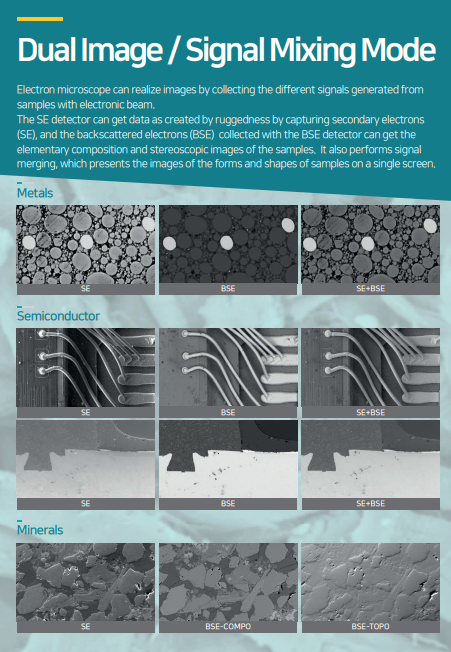

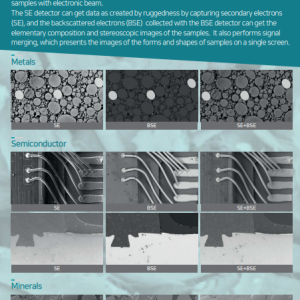

  • Signal mixing
  • Dual display & Save
  • Line profile
  • Image filtering
  • Annotation tool
  • ChamberCam: Yes
  • All-new GUI, NanoStation5
  • Fast frame rate up to 13fps (frames per second)
  • Motorized stage along X, Y, Z axes
  • Variable pressure (10, 20, 30Pa)
  • Compatible with compact EBSD system
  • Fast particle analysis with EDS

SPECIFICATIONS:

  • Electron gun: Tungsten filament (W)
  • Spatial resolution: < 5nm
  • Photo magnification: 15x to 150,000x
  • Display magnification: 15x to 150,000x

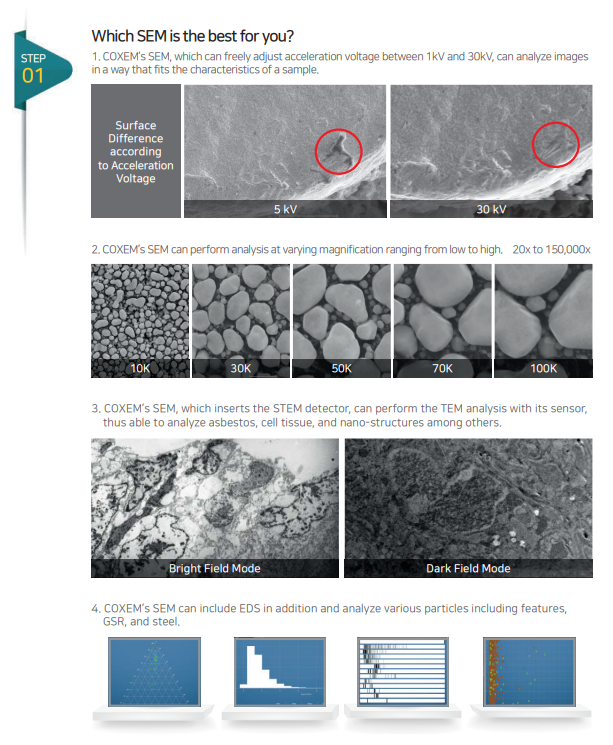

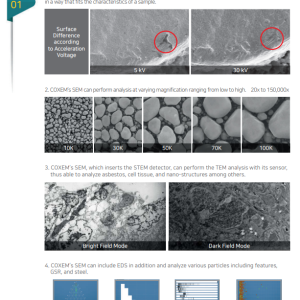

  • Accelerating voltage: 1 ~ 30kV
  • Sample stage:
  • X: 35mm, Y: 35mm, Tilt: 0 ~ 45°
  • Detector: SE, BSE*
  • Vacuum mode: HV, LV* (HV: High vacuum, LV: Low vacuum)
  • Vacuum system:
  • Turbo pump (80L) + Rotary pump (100L)
  • Dimensions:
  • 400 (W) × 630 (L) × 600 (H) mm, 85kg
