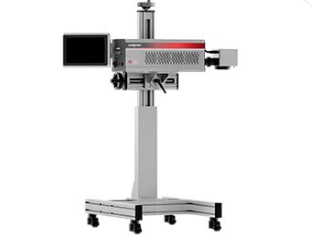

LC130 SERIES
CO₂ Laser Marking Machine
The LC130 Series features a sealed CO₂ laser tube combined with precision beam technology, making it ideal for non-metal marking applications in the electronics, food, and pharmaceutical industries. Its advanced temperature control system and stable output ensure reliable performance, while the rugged, weather-resistant housing provides long-term, maintenance-free operation.
The system automatically synchronizes with production line speeds to deliver consistent, high-speed, and high-precision marking. Its compact, modular design allows seamless integration into automated production lines while optimizing installation space.
Fully Imported Laser Tube
Aviation-grade sealing technology effectively extends the service life of the laser tube, while precision manufacturing ensures stable and consistent laser beam output.
Intelligent Interaction System
The system automatically activates the path simulation function before marking, pre-planning the marking path to improve efficiency. After the marking content and parameters are confirmed, it automatically calculates the optimal marking speed to precisely match the production line capacity.
Beam Deflection Technology
Lug’s Beam Deflection technology allows the laser scanning head to be separated from the main unit, providing greater installation flexibility and enabling operation in confined or hard-to-access spaces.
| Specifications | |
| Interface | – Control system: LugTec operating system
– Display size: 10.1 inches |
| Standard & optional equipment | Standard Configuration:
Main unit, two-dimensional aluminum alloy laser adjustment bracket, 10.1-inch external touch screen, fiber optic sensor, universal sensor adjustment bracket. Optional Accessories: Large-head sensor, 2000p synchronizer, synchronizer bracket, synchronizer coupling, smoke extractor (single-head), optional lenses (for details, please refer to the “Marking Area and Focal Length” table below). |
| Marking Area and Focal Length （mm） | CO2 Field Lens/F73-50*50
CO2 Field Lens /F100-70*70 CO2 Field Lens/F160-110*110(standard) CO2 Field Lens/F210-140*140 CO2 Field Lens/F250-175*175 CO2 Field Lens/F300-210*210 CO2 Field Lens/F330-250*250 CO2 Field Lens/F450-300*300 CO2 Field Lens/F592-400*400 |
| Application /
Substrate |
Capable of meeting the marking requirements for most non-metallic materials, including: ceramics, rubber, PVC, PPC, acrylic, crafts & gifts, furniture, leather garments, non-metal molds & models, food & beverage packaging, tobacco & alcohol packaging, pharmaceuti cal packaging, printing plates, non-metal nameplates, labels, etc. Notably, the 10.2 μm CO2 wavelength delivers perfect results for laminated paper boxes, while the 9.3 μm CO2 wavelength is ideal for PET beverage bottle engraving.* |
| Model Selection | – LC131 (30W-10.6μm)
– LC132 (30W-10.2μm) – LC133 (30W-9.3μm |
| Laser Type and Characteristics | – Laser Tube: Sealed CO2 Laser
– Wavelength: 10.6 μm, 10.2 μm, and 9.3 μm – Cooling System: Air-Cooled |
| Physical Characteristics | – Ambient Temperature: 5-40°C (41-104°F)
– Ambient Humidity: 10%-90%, non-con Densing – Electrical Requirements: 240 VAC, ~50/60 Hz, 1 PH, 0.80 kW – Overall Dimensions: See dimension drawing for details – Net Weight: 20 kg |
| Speed
(Static Marking or Flying Marking) |
– Galvanometer Marking Speed: Up to 13,500 mm/s*
– Production Line Speed: Up to 6,900 mm/s (22 ft/s)* |
| Marking Characteristics | Print Lines: Limited only by character height and printable area
-Fonts: Industry-standard Windows® TrueType® fonts, single-line fonts, and machine-readable codes (OCR, 2D matrix, etc.) -Barcodes: Code128A, Code128B, Code128C, Code39, Code93 -2D Codes: QR Code, Data Matrix, Aztec Code, Han Xin Code -Graphics, Logos, Symbols, etc. -Linear, Circular, Arc-shaped, Reverse, Rotated Serial and Batch Numbers -Automatic date, layered, and time stamping; real-time clock |
| Communication and I/O Interfaces | – UDP, TCP/IP, and RS232
– Encoder and product detection trigger inputs – 3 inputs / 2 outputs for start/stop signals – Machine/operation interlock devices, alarm outputs |
