Features

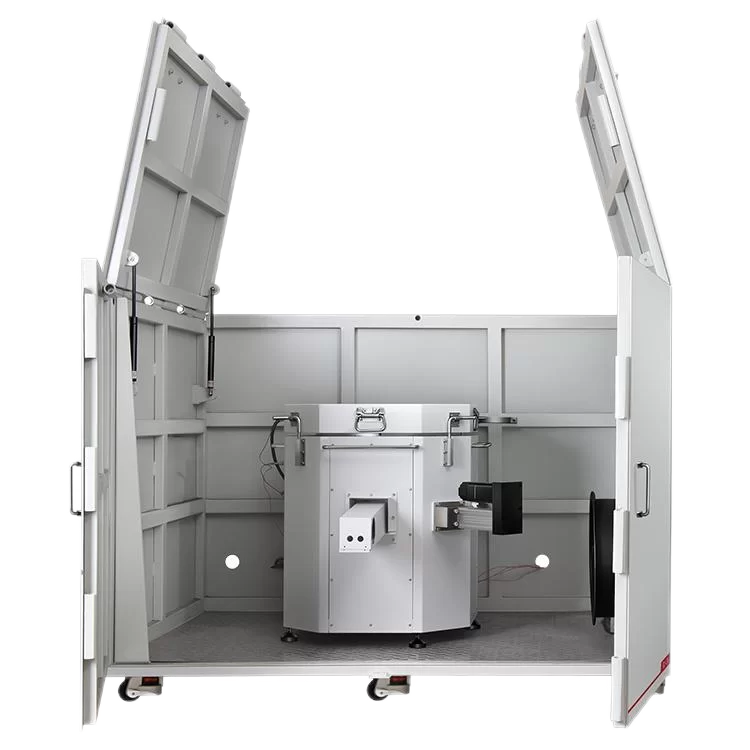

Compact 420 mm Furnace Design
±500 A Standard Electrical Testing Range
Adiabatic Thermal Runaway & Gas Monitoring
High Sensitivity Self-Heating Detection
Auxiliary Heating for Efficient Baseline Stabilization
Integrated Explosion Protection System
Specifications

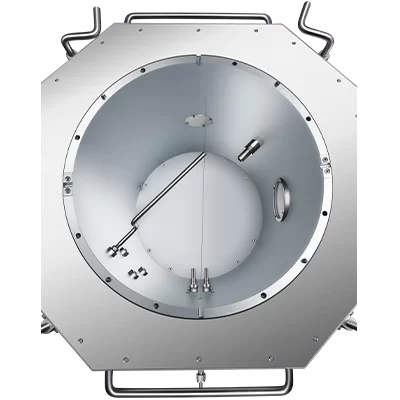

Adiabatic Furnace Dimensions 420 mm (Diameter) × 520 mm (Depth)
Self-exothermic Detection Sensitivity 0.01–0.02 ℃/min, adjustable via software
Temperature Difference between Furnace and Sample in Constant Temperature ≤0.5 °C
Temperature Control Range RT–300 °C
Temperature Tracking Rate 0.02–13 °C/min
Operating Pressure Range 0–2 MPa
Maximum Nail Penetration Stroke Software-configurable
Maximum Current-carrying Capacity of Charge/Discharge Electrode Posts -500 to 500 A
Applications
Testing for Explosion Limits of Gases from Lithium-Ion Battery Thermal Runaway
Adiabatic Thermal Runaway Characteristics Study of Large-Capacity High-Nickel Lithium-Ion Batteries
Thermal Runaway Behavior of Ni-Rich NCM 9-Series Lithium-Ion Batteries
Comparison of Isothermal Calorimeter and Battery Adiabatic Calorimeter for Lithium Battery Charge/Discharge Heat Production Measurement
Optimized Protocol for Heating Wire-Assisted Temperature Difference Baseline Experiments
Verification of the Impact of Clamp Types on the Thermal Runaway Test Results of HWS Batteri
| Technical Parameter | Specification / Value |
|---|---|
| Furnace Diameter | 420 mm |
| Maximum Sample Length | Up to 600 mm |
| Maximum Nail Penetration Stroke | Software-configurable |
| Electrode Posts Capacity | -500 A to 500 A (Charge/Discharge) |
| Test Applications | Thermal Runaway, Heat Generation, Isothermal & Adiabatic Comparison |
