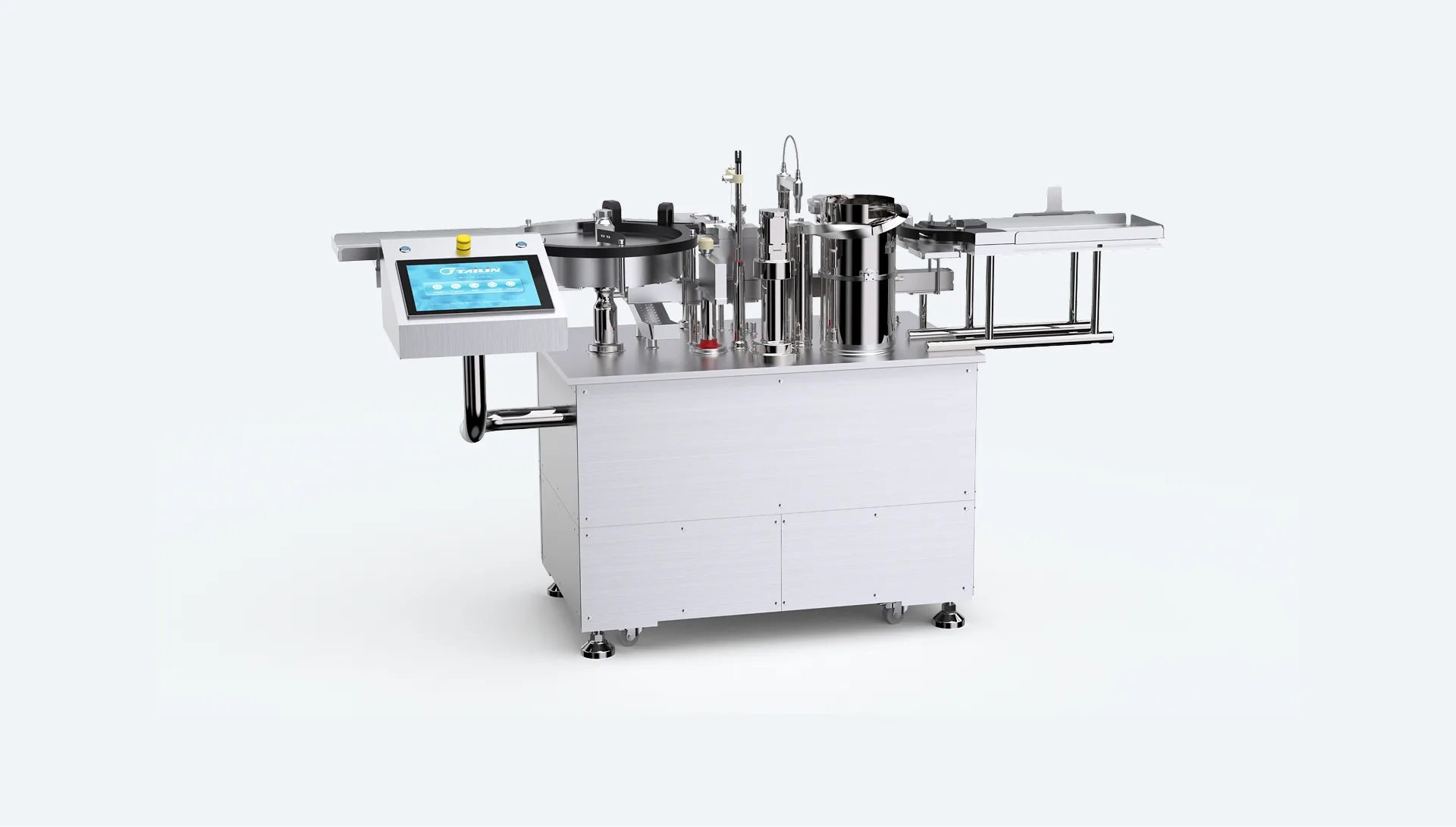

Compact & Isolator-Friendly
A space-efficient design makes Tailin MLFC easy to integrate into isolators, RABS, and controlled cleanroom environments, while maintaining a streamlined workflow.
Removable High-Precision Peristaltic Pump
The removable peristaltic pump enables accurate and consistent liquid filling, while simplifying cleaning, maintenance, and pump replacement.
Built to Adapt
Tailin MLFC offers a high degree of customization, allowing the system to be configured according to process requirements, vial formats, and aseptic production setups.
Features
- cGMP-compliant construction with materials and surface finishes selected for aseptic filling applications.
- Supports FDA 21 CFR Part 11, including access control, audit trails, and electronic signatures.
- Flexible machine layout supporting either single-sided or double-sided operation.
- Nitrogen filling capability for applications requiring controlled gas protection.
- Linear servo-driven conveyor for smooth vial handling while minimizing scratches and tipping.
- Integrated process safeguards, including inverted-vial rejection, no-vial shutdown, no-stopper alarm, nitrogen filling, pneumatic capping, no-stopper/no-capping, and no-cap/no-crimping functions.
- Highly customizable to meet specific process and production requirements.

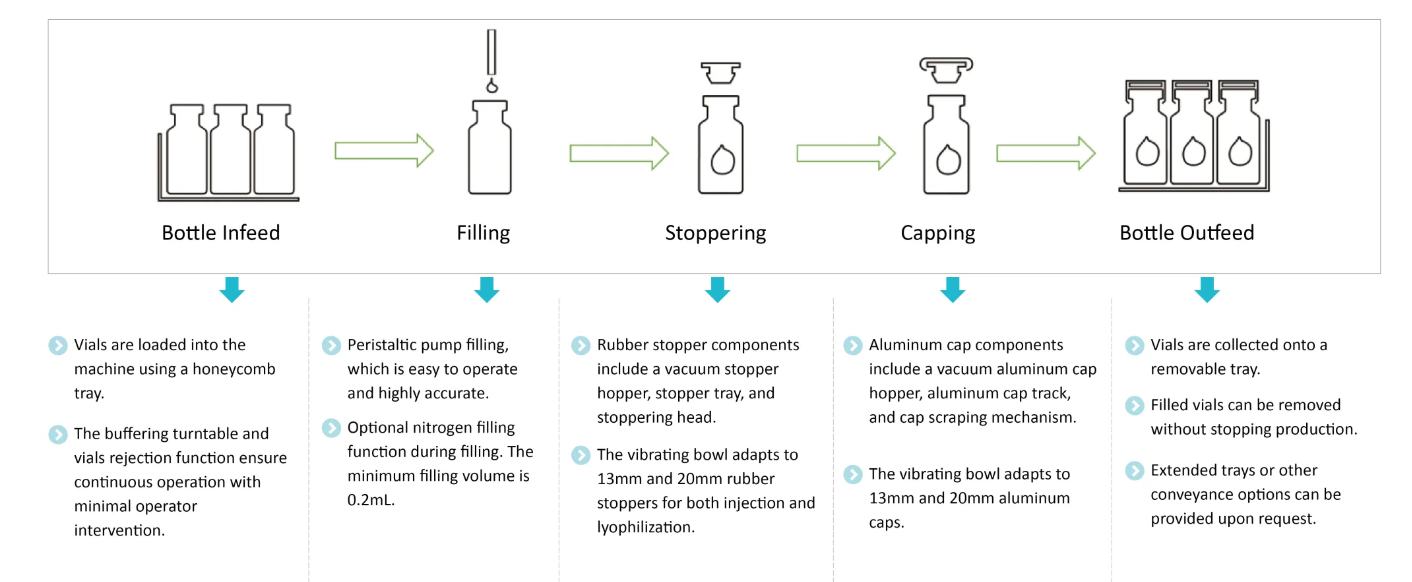

Process
Specifications
| Stopper Size: 13mm and 20mm | Cap Size: 13mm and 20mm aluminum caps, aluminum-plastic caps, RayDyLyo® plastic press caps |
| Filling Method: Peristaltic pump | Output: Approx.6 Vials/min |
| Power Supply: 220V, 50Hz | Power: 1.5kW |
| Filling Volume and Accuracy: 0.5-100mL ±1% (based on water) | Air Supply: Clean compressed air ≥6 bar |
| Vacuum: -150 mbar; pumping speed 4m³/hour | Materials: Stainless steel, anodized aluminum (contact parts with stopper and aluminum cap are SUS316L) |
| Optional: Nitrogen filling before/after filling | Bottle Infeed and Outfeed Trays: Customizable as needed |
