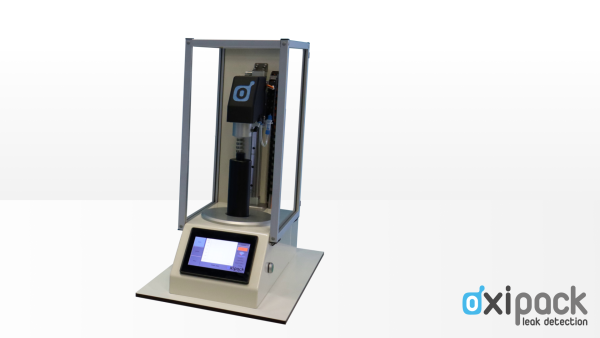

OXIPACK BOTTLE LEAK TESTER (BLT) – OXIPACK

Origin: Netherlands

Brand:

Category: Thương hiệu:

The Oxipack Bottle Leak Tester (BLT) is a specialized solution designed for testing a diverse range of bottles, catering to different dimensions and shapes. Utilizing the vacuum decay method, the BLT ensures that every part of the bottle, from the top to the entire structure, is thoroughly tested for leaks without compromising the contents.

The BLT’s unique measuring head creates an optimal closure around the bottle, allowing for the detection of both significant and minute leaks. The pre-formed design of the tester matches the exact shape of the packaging, ensuring a protective embrace and meticulous accuracy. This non-destructive, user-friendly, and robustly designed tester is integral for maintaining the integrity of bottled products, proving indispensable in quality control processes.

OXIPACK BOTTLE LEAK TESTER (BLT) – OXIPACK

Features:

  • Vacuum decay method for leak testing.
  • Suitable for various bottle dimensions and shapes.
  • Non-destructive, micro leak detection.
  • Pre-formed to match packaging shape.
  • Meets ASTM F2338 standards.

Benefits:

  • Ensures product integrity without spoilage.
  • Versatile for different bottle types.
  • Quick and efficient testing (under 30 seconds).
  • Direct and precise results.
  • Robust and user-friendly design.

Technical Specifications:

  • Dimensions and Weight: 800 x 400 x 710 mm, 40 KG
  • Materials: Powder coated steel, Anodized Aluminium, Polycarbonate, Onyx
  • Power Supply: 100 – 230V 50/60HZ
  • Air Supply: 5.5 – 8 bar
  • Compliance and IP Rating: IP40
  • Leak Detection Method: ASTM F2338
  • Minimum Leakage: > 0.9 cm3/min
  • Maximum Testing Capacity: 2P/M
  • Connections: USB/Ethernet export, 24VDC logic (free programmable)
  • Packaging Type and Size: Bottles with different dimensions and shapes possible
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design
