PILOT-SCALE & MID-SIZE MILLING PLATFORM – QUADRO

Origin: Canada

Brand:

Category: Thương hiệu:

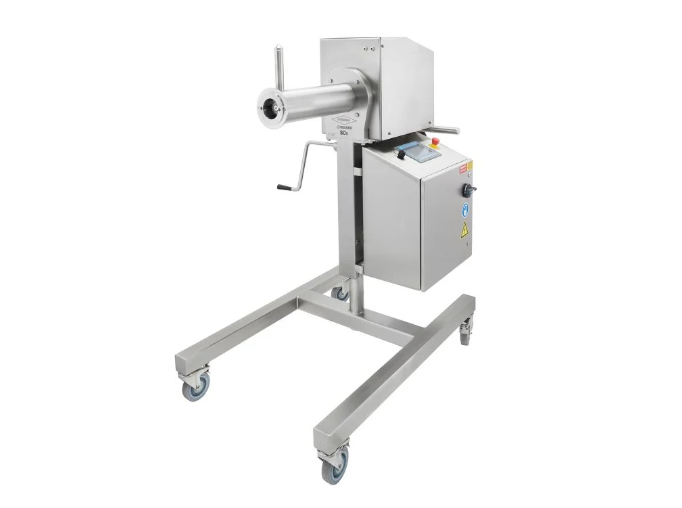

The mid-sized SDx milling and screening platform from Quadro offers two pilot-scale processing solutions on a single common drive, providing a seamless transition from laboratory research to actual production. This solution is ideal for customers with smaller-scale production requirements, complementing Fitzpatrick & Quadro’s versatile range of interchangeable milling and screening solutions. Equipped with SMARTdetect™ technology, it allows rapid head changes and automatic RPM adjustments.

PILOT-SCALE & MID-SIZE MILLING PLATFORM – QUADRO



The mid-sized SDx milling and screening platform from Quadro offers two pilot-scale processing solutions on a single common drive, providing a seamless transition from laboratory research to actual production. This solution is ideal for customers with smaller-scale production requirements, complementing Fitzpatrick & Quadro’s versatile range of interchangeable milling and screening solutions. Equipped with SMARTdetect™ technology, it allows rapid head changes and automatic RPM adjustments.



SUITABLE FOR:

OSD Pharma, Nutraceuticals, Food, Chemical, Cannabis, API Pharma



FLEXIBLE MILLING AND SCREENING HEADS FOR QUADRO SDX PLATFORM

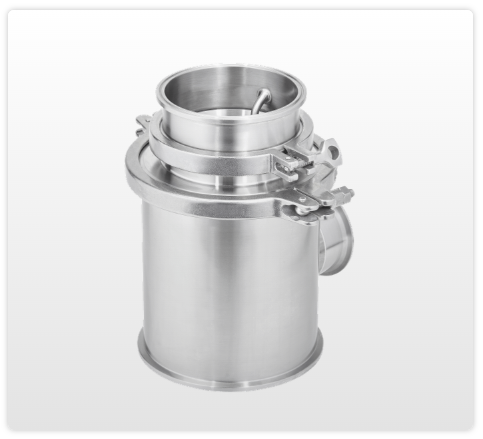

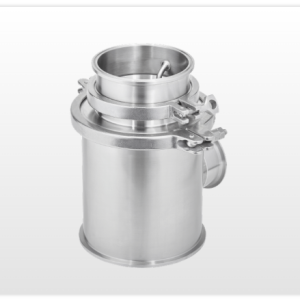

U10x Comil® – Conical Milling

Key Benefits:

  • Results achieved with the classic U10 pilot model are duplicated and enhanced with the upgraded U10x.
  • Greaseless gearbox reduces contamination risk and lowers operational temperatures.
  • Achieve tighter particle size distributions (PSDs), improving on-target performance by 20–40%.
  • Patented high-efficiency screens offer capacity increases up to 50% and lower product temperatures up to 30% (depending on material).
  • Fully compatible with Classic U10 screens and impellers, reducing tooling costs.

At a glance:

  • Greaseless gearbox
  • High-efficiency screen options
  • Enhanced CIP functionality
  • Tooling compatibility with Classic U10
  • Lab-scale model available (SLS Series)
  • Production-scale model available (SDx Series)

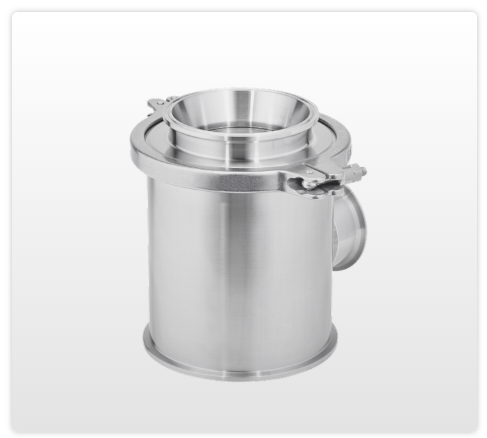

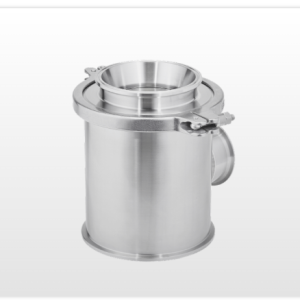

S10x FlexSift – Security Screening

Key Benefits:

  • Security screening system replaces multiple traditional vibratory sifters while delivering similar capacities.
  • Market-leading capacity with 40–50% higher throughput compared to comparable technologies.
  • Optimum capacity range superior to other centrifugal security screeners available.
  • Greaseless gearbox eliminates contamination risks.

At a glance:

  • Greaseless gearbox
  • Lab-scale model available (SLS Series)
  • Production-scale model available (SDx Series)
