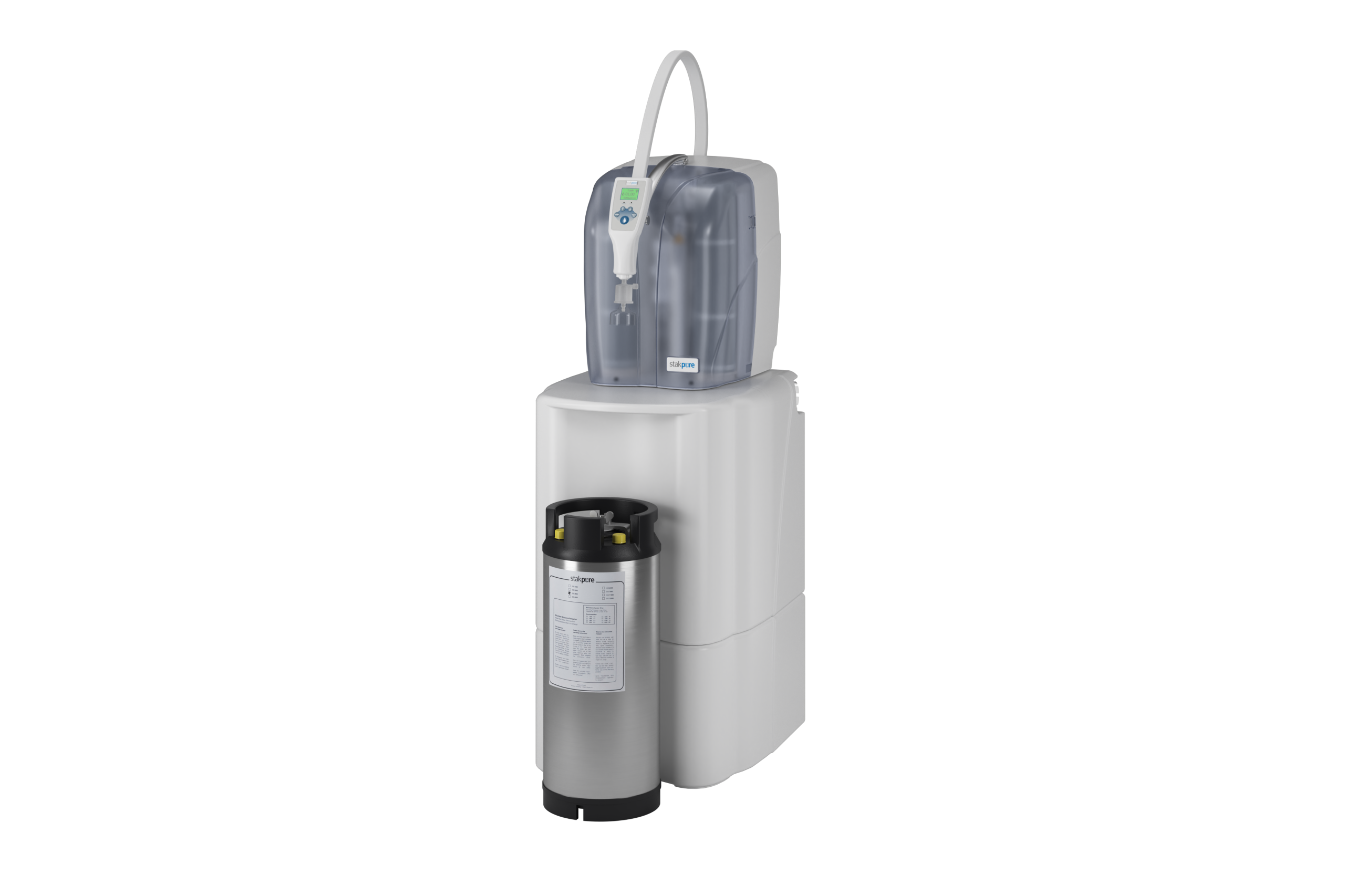

Model: OmniaLabDS
* Features:
- OptiFill Dispenser is standard
- 100L tank with quality recirculation and pressure outlet
- Tank volume display in percent
- Tank volume can be modularly increased
- Simple, cost-effective filter replacement
- Leakage sensor is standard
- Emergency supply (optional)
- Degassing unit (optional)
* Specifications:
|
OmniaLabDS 20 |
OmniaLabDS 40 |
OmniaLabDS 60 |
|
| Pure water Typ II + CLRW (CLSI)
DIN EN 285 + ISO EN 15883 |
|||
|
Pure water performance at 15°C [l/h] |
20 | 40 |
60 |
| Conductivity at 25 °C [µS/cm] |
0.1 up to 1 |
||
| Resistance at 25 °C [MΩ x cm] |
10 up to 1 |
||
| Dispensing performance dispenser [l/min.] |
up to 2 |
||
| Particles* > 0.2 µm [1/ml] |
< 1 |
||
| Bacteria* [KBE/ml] |
< 0.1 |
||
| Pure water tank pressurized outlet |
optional |
||
| *with sterilizing filter 0.2 μm | |||
* Feedwater Requirements:
|
OmniaLabDS 20/40/60 |
|
| Softened or hardness-stabilized water according to DIN 2000 | |
| Feedwater temperature [°C] |
+ 2 up to 35 |
| Manganese and iron content [mg/l] |
< 0.05 |
| Free chlorine content [mg/l] |
< 0.1 |
| Silt density index (SDI) |
max. 3 |
* Technical Data
|
OmniaLabDS 20/40/60 |
|
| Connector size |
R3/4″ |
| Operating pressure [bar] |
2 up to 6 |
| Supply voltage [Volt/Hz] |
90-240/50-60 |
| Connected load [kW] |
0.1 |
| Ambient temperature [°C] |
+ 2 up to 35 |
| Dimensions tower* [W x H x D mm] |
511 x 1520 x 575 |
| Dimensions base cabinet tank [W x H x D mm] |
511 x 800 x 575 |
| Weight [kg] |
39 |
| * with OptiFill Dispenser | |
