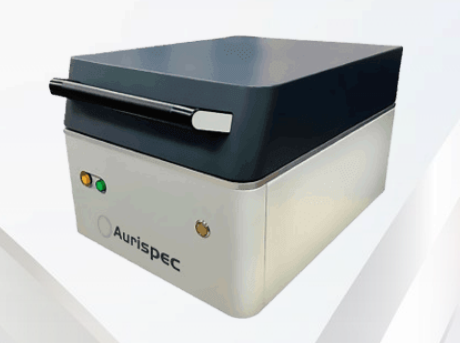

Advantages
– The brand-new downlight integrated design facilitates rapid testing without the need for sample preparation
– The built-in high-definition CCD camera allows for observation and selection of micro-area measurements with precise positioning
– The software is equipped with a distance correction algorithm, enabling precise testing of irregular samples
– Automatically switch collimators and filters
– Micro-spot vertical optical path, specifically designed for coating thickness analysis
– High-count-rate USA SIPIN/SDD enables rapid, non-destructive, and highprecision measurements
– The entire series comes standard with thin-film FP analysis software without the need for a standard sample
Specifications
| Item | B3T | B6T |
| Instrument appearance and dimensions | 400mm × 500mm × 350mm | 400mm × 500mm × 410mm |
| Extra-large sample chamber | 310mm × 460mm × 95mm | 310mm × 460mm × 210mm |
| Instrument weight | 35kg | 40kg |
| Element analysis range | K (19) to U (92) | Mg (12) to U (92) |
| Analyzable content range | 1ppm–99.99% | 1ppm–99.99% |
| Detector | High-resolution SIPIN (Amptek) | High-resolution SIPIN (Amptek) |
| Multi-channel analyzer | 4096-channel DPP analyzer | 4096-channel DPP analyzer |
| X-ray tube | 50W high-power micro-focusing light tube | 50W high-power micro-focusing light tube |
| X-ray irradiation method | From bottom to top | From bottom to top |
| Collimator | Automatically switch between round holes of Φ0.1mm, Φ0.2mm, and Φ0.3mm, with options for micro holes of 0.05 × 0.1mm and 0.05 × 0.2mm | Automatically switch between round holes of Φ0.1mm, Φ0.2mm, and Φ0.3mm, with options for micro holes of 0.05 × 0.1mm and 0.05 × 0.2mm |
| Optical filter | 3 types switchable | 3 types switchable |
| High-voltage generating device | The maximum voltage output is 50kV, with built-in voltage | The maximum voltage output is 50kV, with built-in voltage |
| Voltage | 220VAC 50/60Hz | 220VAC 50/60Hz |
| Sample focusing | Manual ranging and focusing | Manual ranging and focusing |
| Ambient temperature | -10°C to 35°C | -10°C to 35°C |
Specifications
| Standard | Optional |
|---|---|
| Pure gold standard sample | Power stabilizer |
| Ring holder | Gold alloy standard sample |
| USB cable | Coating thickness standard sample |
| Power cable | Coating solution standard sample |
| Window Film | |
| Calibration and quality report | |
| Warranty card |
Applications
– Capable of testing the thickness and composition content of multi-layer coatings, non-metals, light metals, multi-layer multi-element coatings, and organic layers:
– Single coating application: such as A/gCu, Zn/Fe, Cr/Fe, Ni/Fe, etc
– Multi-coating applications: such as Ag/Pb/Zn, Ni/Cr/Fe, Au/Ni/Cu, etc
– Application of alloy coatings: such as ZnNi/Fe, ZnAl/Ni/Cu, etc
– Application of alloy composition: such as NiP/Fe, analyzing both the nickel and phosphorus content as well as the coating thickness
– The objects measured include plating, coating, laminating, painting, chemically formed film, etc
– Can measure the thickness of various metal coatings such as ion plating, electroplating, vapor deposition, etc
– Chrome plating, such as plastic products with decorative chrome plating finish
– Anti-corrosion coating such as zinc on steel
– Coatings on circuit boards and flexible PCBs
– Contact surface between plug and electrical contact
– Analysis of precious metal coatings, such as rhodium materials on gold substrates > Analysis of functional coatings in the electronics and semiconductor industries
– Analyze hard material coatings, such as CrN, TiN, or TiCN
– It can be expanded to include RoHS hazardous element analysis and electroplating solution ion concentration analysis
