FEATURES:
Modern Smart User Interface with Touchscreen Color Display:
Facilitates accurate color measurement in seconds, with a robust industrial glass design suitable for harsh environments.
Self-Guided and Intuitive Out-of-Box Startup:
Time-Saving and User-Friendly: Ready to use straight out of the box with an integrated wizard for quick training, reducing operator time and easing concerns related to staff training and turnover.

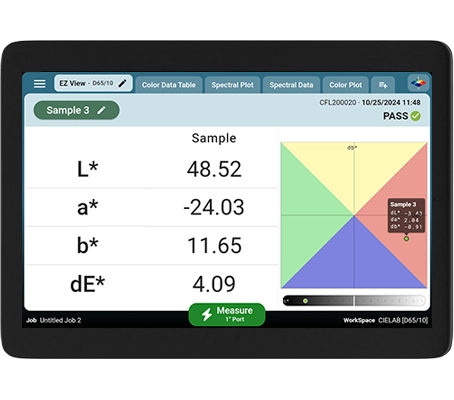

New & Improved Color Software:
Take precise and reliable color measurements in seconds with next-gen user-friendliness and seamlessly analyze multiple tristimulus and spectral data sets.
Powerful Standalone Functionality:
No Computer Required: With huge onboard processing and storage capacity, ColorFlex L2 can function as an independent color workstation. Connect monitor, keyboard, and mouse if desired.
Compact with Sealed Spillproof Case
Space-Saving and Easy Maintenance: Occupies minimal space and is designed to withstand the demands of busy lab environments.
Built-in Camera for Sample Viewing and Screen Recording:
Precision and Communication: Ensures accurate sample positioning to eliminate measurement discrepancies and allows easy sharing of recordings for swift quality control decisions.
Built-in Advanced Diagnostics
On-board Diagnostic Health Check: Ensures the HunterLab ColorFlex L2 is always operating at peak performance, continuing to build on the legendary history of reliability of the ColorFlex family of instruments.
Compact with Sealed Spillproof Case:
Space-Saving and Easy Maintenance: Occupies minimal space and is designed to withstand the demands of busy lab environments.
Advanced Data Export and Communication:
Full Suite of Data Communication Options: Features Ethernet and USB port for easy data export and printing. HDMI and additional USB port for mouse, keyboard and other accessories.
Connectivity with LIMS and SPC systems:
Simplifies QC Workflows: Aids in trend analysis and workflow simplification across manufacturing sites.
SPECIFICATION:
| MEASUREMENT | |
| Measurement Principle | Port up or Port forward dual-beam spectrophotometer |
| Geometry | 45°a:0° Annular Illuminated Optics, ASTM E1164 |
| Spectrophotometer | Sealed optics; 256-element diode array and a high resolution concave holographic grating |
| Port Diameter/View Diameter | 31.8 mm (1.25 in) illuminated/ 25.4 mm (1 in) measured |
| Specular Component | Excluded |
| Spectral Range | Range: 400 nm – 700 nm |
| Spectral Resolution | < 3 nm |
| Effective Bandwidth | 10 nm equivalent triangular |
| Reporting Interval | 10 nm |
| Photometric Range | 0 to 150 % |
| Light Source | Full spectrum Xenon Flash Lamp |
| Measurement Duration | 1 second |
| Lamp Life | 10 years typical |
| Illumination | Factory Calibrated Xenon for Brightness, Whiteness, and Tint |
| Standards Conformance | CIE 15:2018, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C |
| Standards Traceability | Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259 |
| PERFORMANCE | |
| Inter-Instrument Agreement | Color: ∆E*2000 < 0.15 D65/10 (Avg) on BCRA CCSII Tile |
| Colorimetric Repeatability | Color: ∆E*< 0.05 D65/10 (Max) on White Tile |
USER INTERFACE:
- Data Views: Color Data, Spectral Plot, EZ View, Tristimulus Color Plot, Pass/Fail Color Indication, Time, and Date Stamp, Auto-naming, Auto-saving, Data backup, Image Capture via High-resolution Camera
- USB Flash Drive Features: Job Data, Sample Images, Screen Capture and Database Export
- Other Features: Pass/Fail, Average Multiple Measurements, Set Multiple Automatic Measurements
- Illuminants: A, C, D50, D55, D65, D75, F02, F07, F11
- Observers: 2° and 10°
- Color Scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ, Rd,a,b
- Color Difference: ∆L*a*b*, ∆Lab, ∆L*C*h, ∆Yxy, ∆XYZ, ΔE, ΔE*, ΔE*2000, ΔH*, ΔC*, ΔEcmc
- Indices and Metrics: E313 Whiteness and Tint (C/2°, C/10°, D65/2° or D65/10°), E313 Yellowness (C/2°, C/10°, D65/2° or D65/10°), D1925 Yellowness (C/2°), Y Brightness, Z%, 457 nm Brightness, Opacity, Color Strength (Average and Single Wavelength), Gray Scale, Gray Stain, Metamerism Index
- Data Storage: 1 million Records max; 8 GB
- Languages: Supports multiple languages—with the option to add more as needed
PHYSICAL / ELECTRICAL
- Dimensions: Height: 16 cm (6.25 in.)
- Width: 21 cm (8.75 in.)
- Depth: 24 cm (9.50 in.)
- Weight: 2.75 kg (6 lbs)
- Display: 7” Touch screen, high resolution 1280×800
- Interface: 2 USB ports, HDMI Video Output, Foot switch Input, Ethernet connection, USB Service Port, Convenient physical measurement/action button
- Power: 90 – 240 VAC, 47 – 63 Hz to universal power supply @ 24 VDC/3.75A
- Operating Environment: 10° to 30°C (50° to 86° F), 10 % to 90 % RH, noncondensing
- Storage Environment: -20° to 65°C (-4° to 149° F), 10 % to 90 % RH, noncondensing
