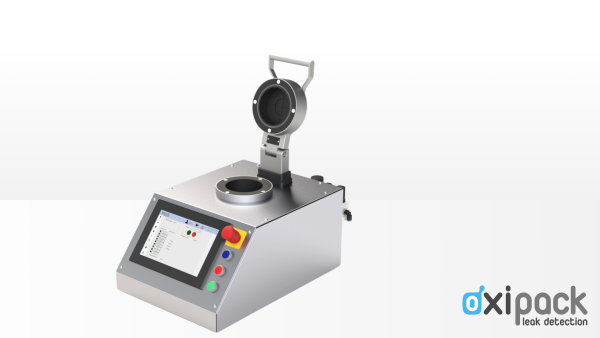

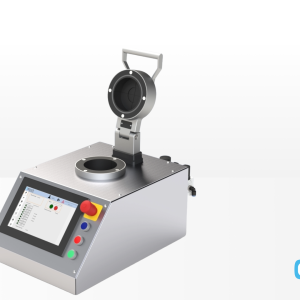

CONTAINER CLOSURE INTEGRITY TESTER (CCIT) – OXIPACK

Origin: Netherlands

Brand:

Category: Thương hiệu:

The Oxipack Container Closure Integrity Tester (CCIT) is a high-precision leak testing solution tailored for the pharmaceutical and biological industries. Its advanced design allows it to adapt to a wide range of container types, such as vials, ampoules, and bottles, without the need to change the entire test chamber. This flexibility leads to faster, more efficient testing.

The CCIT is distinguished by its high accuracy in leak inspection, utilizing a flexible, FDA-approved membrane that conforms to various container shapes. It delivers rapid performance, with a user-friendly touchscreen that provides a clear overview of settings and test results. Measuring leaks in pharmaceutical bottles via the vacuum decay method (ASTM F2338), the CCIT is an accurate, non-destructive, and straightforward solution for ensuring product integrity in sensitive industries.

CONTAINER CLOSURE INTEGRITY TESTER (CCIT) – OXIPACK

Features:

  • High-precision vacuum decay method (ASTM F2338).
  • Suitable for pharmaceutical containers like vials and ampoules.
  • User-friendly touchscreen interface.

Benefits:

  • Ideal for sensitive pharmaceutical products.
  • No need to change test chamber for different containers.
  • Fast and accurate leak detection.

Technical Specifications:

  • Weight: 20 kg
  • Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber, Accura Xtreme
  • Power Supply: 230V 50/60HZ
  • Air Supply: 5.5 – 8 bar
  • Compliance and IP Rating: CE IP20
  • Size Measuring Chamber: Up to 500 ml Vials
  • Leak Detection Method: ASTM F2338
  • Minimum Leakage: < 0,035 cm3/min
  • Connections: USB/Ethernet export, 24VDC logic (free programmable)
  • Packaging Type and Size: Vial, Ampoule, Bottle
  • Options: IOT Data, Barcode scanner, Printer, Line Numbers
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design

Related products

MINI SPRAY DRYER - UNOPEX B 15

General Lab Equipment

MINI SPRAY DRYER – UNOPEX B 15

The Unopex B 15 Mini Spray Dryer is a laboratory-scale spray drying device designed for producing powders from aqueous solutions and organic solvents. It is ideal for research, product development, and small-scale applications in various industries such as food, pharmaceuticals, chemicals, cosmetics, and advanced materials.

GB SERIES 1200°C MUFFLE FURNACE - HOBERSAL

General Lab Equipment

GB SERIES 1200°C MUFFLE FURNACE – HOBERSAL

SAFETY FEATURES Automatic shutdown in case of thermocouple failure Automatic power-off when the furnace door is opened STANDARD FEATURES Manufactured according to CE standards Maximum operating temperature: Up to 1200°C Fast heating capability Compact design, lightweight construction Convincing price/performance ratio Dual-sided heating with KANTHAL AF and APM heating elements Low thermal mass insulation for energy...

STATIONARY LEAK TESTER PHARMACEUTICAL (SLTP) - OXIPACK

General Lab Equipment

STATIONARY LEAK TESTER PHARMACEUTICAL (SLTP) – OXIPACK

Oxipack's standard solution for testing a wide range of flexible packaging, the SLT combines efficiency and accuracy in leak detection for maintaining product quality.

SPECTROPHOTOMETERS MINISCAN EZ - HUNTERLAB

General Lab Equipment

SPECTROPHOTOMETERS MINISCAN EZ – HUNTERLAB

MiniScan® EZ is a compact, robust, and portable color measurement device that can be easily carried to the production floor, assembly line, warehouse, or used outdoors—wherever sample measurement is needed. With exceptional reliability, the device accurately determines the color of a sample, the color difference between two samples, or the difference between a sample and a product standard. MiniScan® EZ complies with all industry standards for reflective color measurement and supports measurement in all commonly used color scales.

VACUUM-SEALED LEAK TESTER (VSLT) - OXIPACK

General Lab Equipment

VACUUM-SEALED LEAK TESTER (VSLT) – OXIPACK

The Oxipack Vacuum-Sealed Leak Tester (VSLT) is specifically designed for detecting leaks in vacuum-sealed packaging, ideal for products like vacuum-packed sausages. It can test packaging immediately after production, identifying even the smallest micro leaks. The VSLT is particularly useful in the meat industry, where leak detection is crucial for product quality and shelf life. The machine features a built-in vessel and vacuum pump, creating a deep vacuum in a small measuring space around the packaging. This enables the VSLT to detect both micro and larger leaks in a non-destructive manner. Additionally, its capacity to test various packaging shapes and sizes, thanks to customizable inserts, makes it a versatile and essential tool for quality assurance in vacuum-sealed products.

ELECTROCHEMICAL WORKSTATIONS - MCS-200 - BIOLOGIC

General Lab Equipment

ELECTROCHEMICAL WORKSTATIONS – MCS-200 – BIOLOGIC

Conductivity detection is ideally suited to inorganic reduction/oxidation reaction, proton exchange, metal ligand binding and micelle formation from surfactants. Conductivity can bring complementary information to absorbance meaning the simultaneous acquisition of two signals is possible.

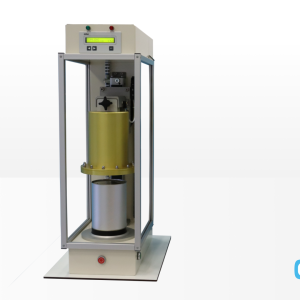

CAN LEAK TESTER (CLT) - OXIPACK
