Accelerating Rate Calorimeter

Origin: China

Brand:

Category: Tags: , Thương hiệu:
Tags: ,

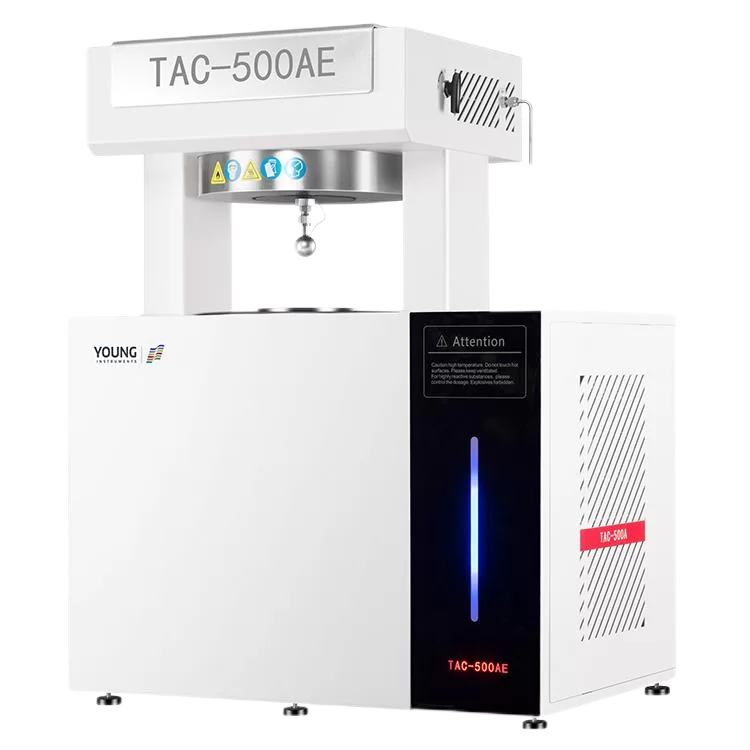

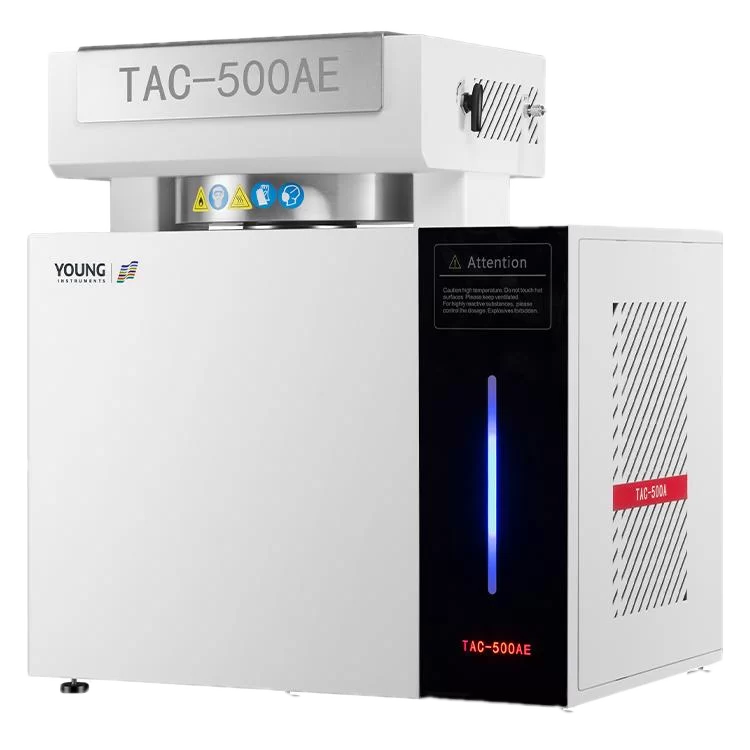

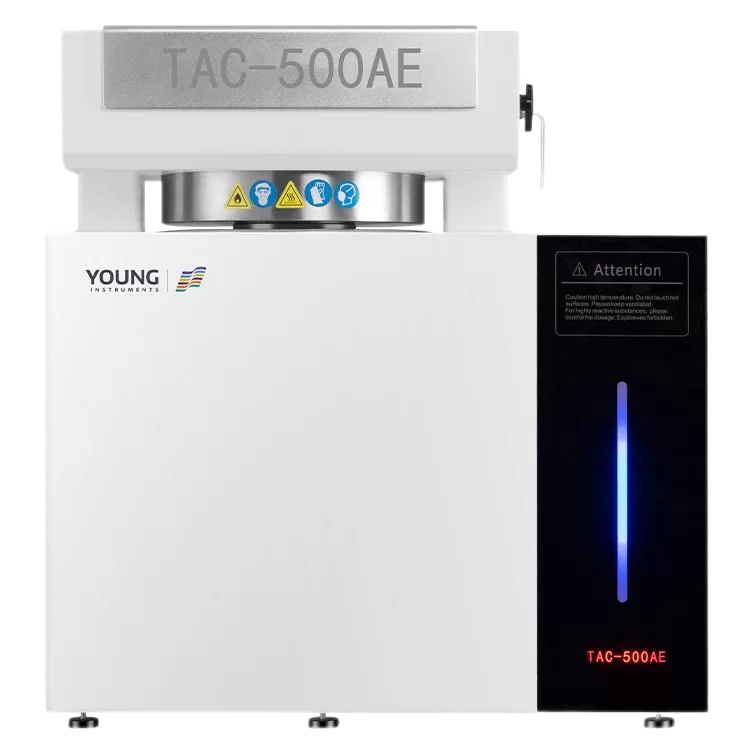

TAC-500AE

The TAC-500AE is a professional testing instrument designed to simulate potential thermal runaway reactions under laboratory conditions. It is primarily used in the fields of fine chemicals, pharmaceuticals, energetic materials, organic chemistry, polymers, and plastics for the research and development of chemical processes, process optimization and scale-up, assessment of chemical thermal hazards, investigation and analysis of combustion and explosion accidents, and thermokinetic studies.

Test Parameters

Process and Safety Assessment, Thermodynamic Calculations, Runaway Reactions

Application

Risk Assessment of Reactions, Pharmaceuticals, Food and Organic Synthesis, MTSR Process Safety

Features

Supports Heating-Waiting-Search (HWS) mode, isothermal mode, and constant-rate scanning mode.



Equipped with professional data analysis software that automatically calculates parameters such as heat release onset temperature, adiabatic temperature rise, activation energy, and pre-exponential factor.



The software integrates methods and standards for reaction safety risk assessment, enabling a one-stop evaluation of the hazard level of reaction processes.



Capable of connecting to an inert gas for rapid cooling of the furnace after the experiment.



Features experimental status indicators and alarms for overpressure and overtemperature.



Automatic lifting function of the furnace lid for safety and ease of operation.



Professional industrial design with a simple and generous appearance, user-friendly human-machine interaction, easy to learn, understand, and operate.



The data analysis software includes differential conversion rate thermodynamic calculation methods, offering significant advantages in calculating the thermokinetics of thermal decomposition for mixtures and predicting thermal hazards.

Specifications

Operating Environment 5–40 °C, < 85% RH
Temperature Range RT–500 °C
Temperature Detection Threshold 0.005–0.02 °C/min
Temperature Tracking Rate 0.005–40 °C/min
Temperature Resolution 0.001 °С
Pressure Detection Range 0–20 MPa
Pressure Resolution 1 kPa
Sample Cup Capacity 8 mL
Material of Test-cell Stainless steel, titanium alloy, hastelloy (optional)
Phi ≤1.35
Interface USB or RJ45
Power Supply AC 220 V, 50 Hz
Power ≤3000 W
Dimensions 620 mm × 470 mm × 670 mm
Weight Approx. 78 kg

Applications

Accelerating Rate Calorimeter for Studying the Thermal Stability of Battery Materials



Studying Auto-decomposition of Air-Sensitive Samples by Adiabatic Calorimetry



Enhancing Safety in Fine Chemical Processes: Exploring Accelerating Rate Calorimeter

Related products

Heat Flow Meter HFM 510AE

Thermal Analysis and Calorimetry

Heat Flow Meter HFM 510AE

The HFM 510AE Heat Flow Meter Thermal Conductivity Tester complies with GB/T 10295-2008, ASTM C518, and ISO 8301. It features high accuracy, high efficiency, and good repeatability, enabling thermal conductivity testing of a wide range of low-thermal-conductivity materials, including expanded polystyrene (EPS), extruded polystyrene (XPS), rigid PU foam, mineral wool, expanded perlite, foam glass, natural fiber materials, cork, wool, aerogel, concrete, gypsum, and more.   Test Parameters Thermal conductivity   Applications Thermal insulation materials | Insulation materials

Large Battery Adiabatic Calorimeter BAC-800BE - ZEAL

Thermal Analysis and Calorimetry

Large Battery Adiabatic Calorimeter BAC-800BE – ZEAL

BAC-800BE is engineered for testing medium- to large-format battery cells and modules up to 900 mm in length. Featuring an 800 mm diameter furnace and a ±1000 A current capability, the system delivers the high-current performance required for demanding electrical abuse tests. It also enables reliable evaluation of heat generation during battery charge/discharge, particularly under high-load and elevated-current conditions.

Large Battery Adiabatic Calorimeter BAC-1000AE - ZEAL

Thermal Analysis and Calorimetry

Large Battery Adiabatic Calorimeter BAC-1000AE – ZEAL

Built for the demands of next-generation battery testing, the BAC-1000AE accommodates large-format cells, modules, and partial pack assemblies up to 1,500 mm in length. Its 1,000 mm adiabatic furnace and ±1,000 A current capability provide the capacity needed for module-scale thermal runaway and gas generation testing. By combining controlled thermal conditions with realistic electrical loading, the BAC-1000AE delivers reliable insights into the thermal behavior and safety of high-capacity battery systems.

Small Battery Adiabatic Calorimeter

Thermal Analysis and Calorimetry

Small Battery Adiabatic Calorimeter

BAC-90AE

  BAC-200AE

The BAC-90AE Small-Scale Battery Adiabatic Calorimeter is developed based on adiabatic accelerating calorimetry for battery safety testing of small lithium-ion cells. By synchronously acquiring voltage, current, capacity, temperature, pressure, and time data under various abuse conditions, it enables battery and battery-pack R&D and testing teams to perform comprehensive safety performance evaluation.

Test Parameters

Thermal runaway onset temperature | Maximum thermal runaway rate | Adiabatic temperature rise

Applications

Lithium-ion batteries

SMALL BATTERY ADIABATIC CALORIMETER - ZEAL

Thermal Analysis and Calorimetry

SMALL BATTERY ADIABATIC CALORIMETER – ZEAL

The BAC-200AE is an advanced adiabatic calorimeter designed for thermal safety evaluation of small-format batteries. It accommodates pouch cells up to 240 mm, cylindrical cells up to the 4680 format, and coin cells, providing a versatile solution for a wide range of battery testing applications. By accurately simulating an adiabatic environment, the BAC-200AE enables comprehensive thermal characterization, including thermal runaway analysis, gas evolution measurement, charge/discharge calorimetry, and specific heat capacity determination. The system delivers critical data for evaluating battery safety, optimizing thermal management strategies, and supporting the design, validation, and certification of next-generation energy storage systems.

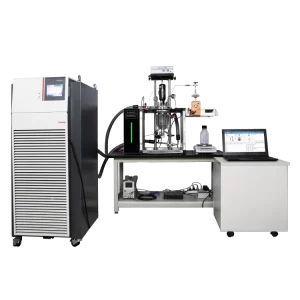

Reaction Calorimeter RC HP-1000AE

Thermal Analysis and Calorimetry

Reaction Calorimeter RC HP-1000AE

RC HP 1000AE is a professional instrument designed to simulate chemical reactions at the liter scale, while measuring and controlling key process variables. As an automated reaction calorimeter for laboratory use, it can reproduce the real conditions of batch or semi-batch processes, and is widely applied in fine chemicals, pharmaceuticals, and third-party safety assessment for reaction process design, process optimization and scale-up, and process safety evaluation. Test Parameters Reaction process design, process optimization and scale-up, process safety evaluation Application Fine chemicals

Rapid Screening Calorimeter RSC-400AE - ZEAL

Thermal Analysis and Calorimetry

Rapid Screening Calorimeter RSC-400AE – ZEAL

RSC400A E is a professional testing instrument designed for rapid evaluation of reaction heat hazards. It is widely used in chemical, pharmaceutical, and research applications for fast screening of chemical stability and identification of potential reaction hazards. Test Parameters Reaction onset temperature, exothermic temperature rise, specific heat release, gas generation Application Hazardous chemicals | Fine chemicals

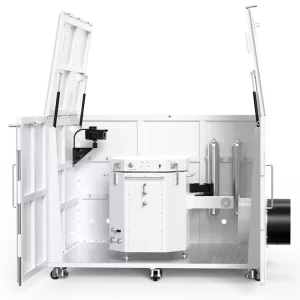

Large Battery Adiabatic Calorimeter
