Features
Dual-channel design for higher testing efficiency and improved accuracy
Large sample capacity and pressure data capability not available with DSC/DTA
Key components sourced from internationally recognized brands to ensure long-term stable operation
Supports constant-temperature mode, scanning mode, and dual-gradient scanning mode
Professional data analysis software enables identification of temperature/pressure onset points, peak temperature/pressure, temperature/pressure rise rates, and reaction heat
Experiment status indication with overpressure and overtemperature alarm functions
Rapid furnace cooling after testing via inert gas purging

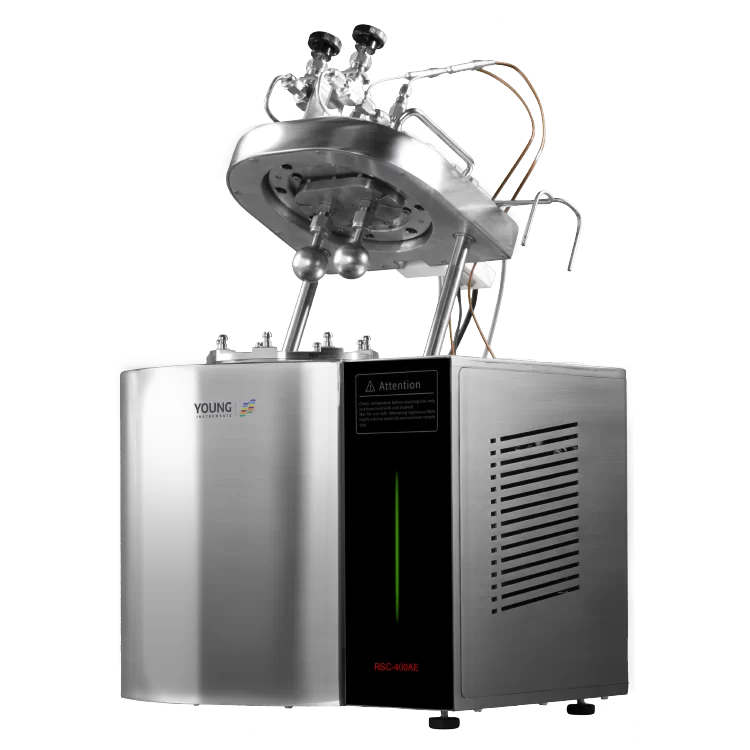

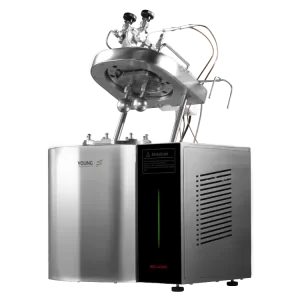

Automatic furnace lid locking; the lid can only be opened when internal pressure and temperature return to the safe range
Professional industrial design with a clean and robust appearance
Specifications
Operating environment (5–40)°C, <85% RH
Temperature control range Room temperature to 400°C
Heating rate (0.5–10)°C/min
Temperature resolution 0.01°C
Pressure range (0–20) MPa
Pressure resolution 1 kPa
Detection sensitivity 1% DTBP @ 6 mL toluene
Sample cell volume 8 mL
Sample cell material Stainless steel, titanium, Hastelloy (optional)
Interface RJ45
Power supply AC 220 V / 50 Hz
Power 800 W
Dimensions 310 mm × 280 mm × 350 mm
Weight 15.5 kg
