3D Thermal Properties Analyzer

Origin: China

Brand:

Category: Tag: Thương hiệu:
Tags:

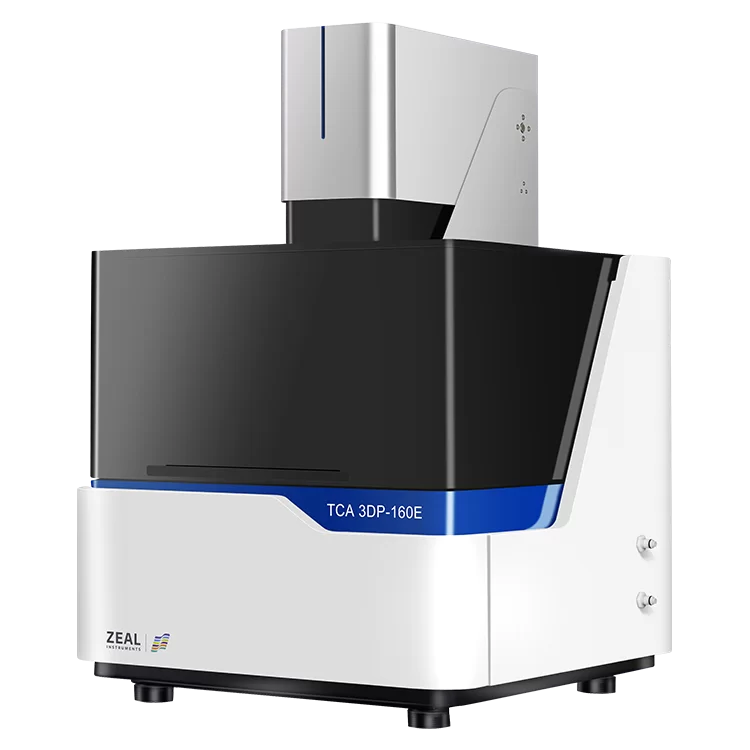

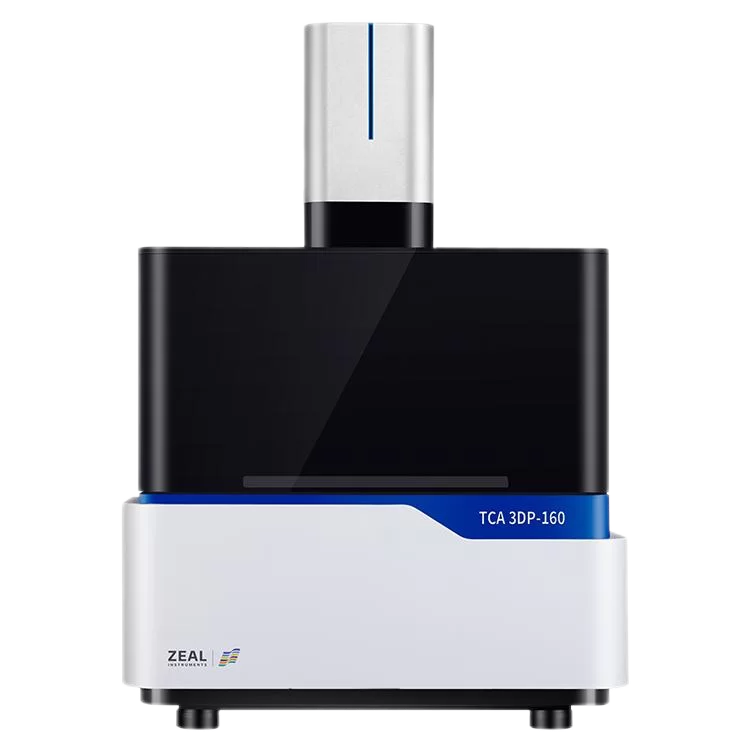

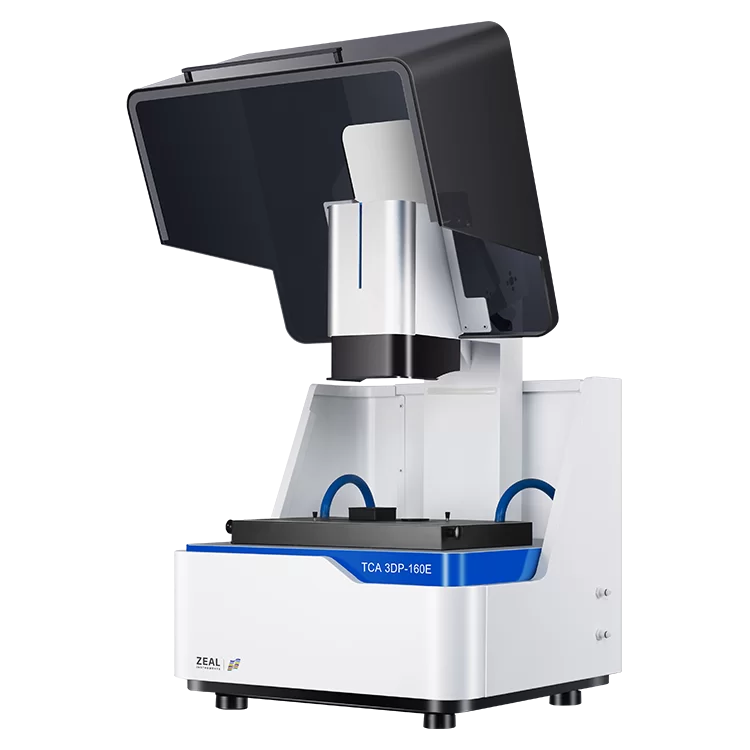

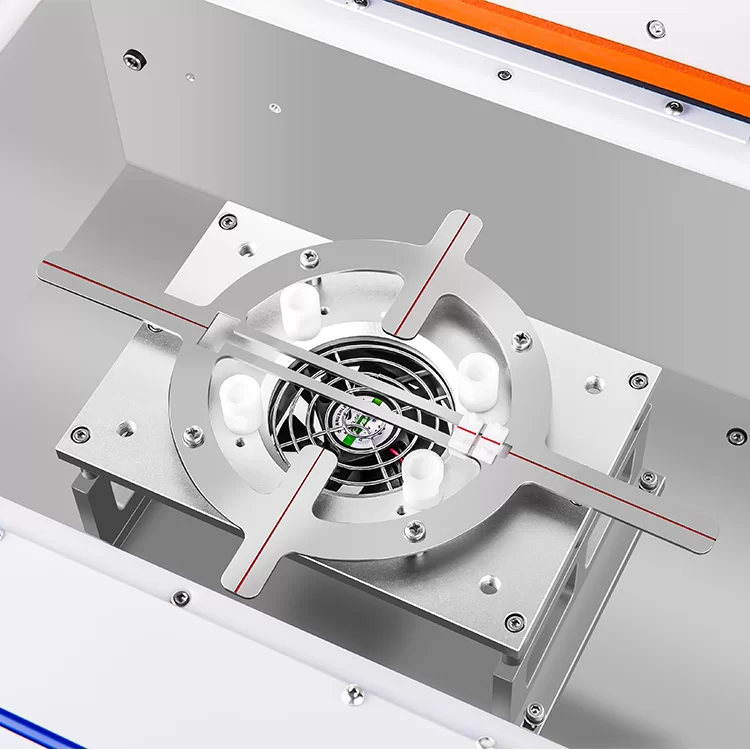

Based on non-contact infrared thermography and 3D heat transfer inverse analysis, the TCA 3DP-160E directly measures in-plane and through-plane thermal conductivity of pouch lithium-ion batteries without sample destruction.



Test Parameters

Thermal conductivity



Applications

Pouch lithium-ion batteries



Features

Non-destructive measurement of effective thermal conductivity in multilayer battery structures



Applicable to lithium-ion pouch batteries with complex internal architectures



Supports both homogeneous and heterogeneous thermal systems



Multi-dimensional data acquisition with inverse modeling for reduced human error



Real-time visualization of thermal field distribution and error analysis for validation

Specifications

Repeatability ≤8%
Sample Dimensions In-plane ≤400 mm × 250 mm; Through-plane 3–20 mm
Test Time ≤10 min (excluding sample preparation)
Test Temperature Range 0–60°C
Temperature Accuracy 0.1°C
Image Resolution 320 × 240
Temperature Resolution 0.01°C
Data Acquisition Interface RJ45
Test Control Interface Serial Port

Applications

Precise Determination of Thermal Conductivity in Pouch-Cell Li-ion Batteries



Original Thermophysical Analysis Technique for Thermal Conductivity Testing of Soft-Pack Batteries
